Flanged valve
Brass Anechoic Check Valve(H42X-16T)
Technical parameters:
Nominal pressure: PN1.6MPa
Working medium: water, non-corrosive liquid
Working temperature: -10℃
Brass Anechoic Check Valve(H42X-16T)
Technical parameters:
Nominal pressure: PN1.6MPa
Working medium: water, non-corrosive liquid
Working temperature: -10℃

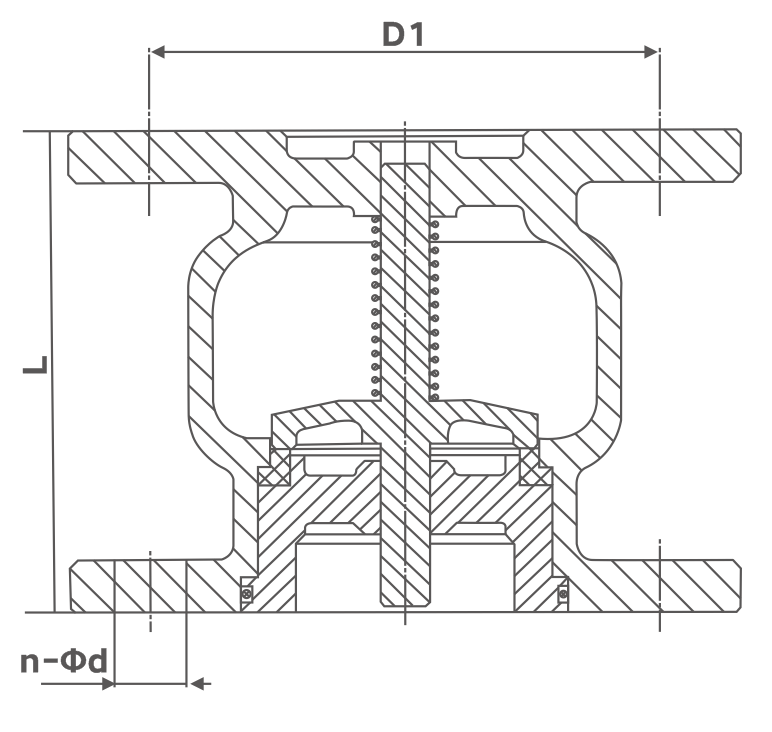

| DN | SIZE | L | D1 | n-Φd | |||
| 32 | 11 /4 | 100 | 100 | 4-Φ18 | |||
| 40 | 11 /2 | 110 | 110 | 4-Φ18 | |||
| 50 | 2 | 120 | 125 | 4-Φ18 | |||
| 65 | 21 /2 | 140 | 145 | 4-Φ18 | |||
| 80 | 3 | 150 | 160 | 8-Φ18 | |||
| 100 | 4 | 180 | 180 | 8-Φ18 | |||
| 125 | 5 | 210 | 210 | 8-Φ18 | |||
| 150 | 6 | 220 | 240 | 8-Φ22 | |||
| 200 | 8 | 258 | 295 | 12-Φ22 | |||
